API.6A Valves, API Gate Valves, API MUD Valves, API 6A Choke Valves

Products

API 6A Valves

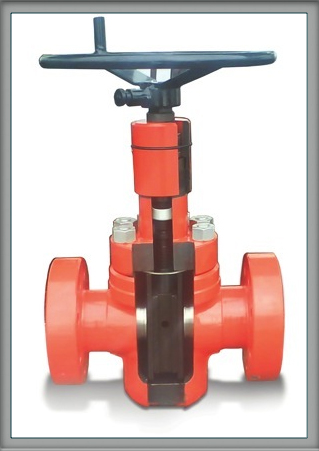

Gate Valves

The through conduit gate valve has been developed to satisfy the need for a high quality, high specification valve which is reliable and reasonably priced. Oilquip gate valves make full use of modern materials and manufacturing techniques. The valve is robust, easy to maintain, conforms to international Design requirements and Quality Assurance programmes.

The gate valve conforms to all aspects stated in the API.6A Standard. Manufacture of the valve takes place in a Plant that is regularly audited by Third Party Auditing Bureaux to ensure the API.Q1 and ISO9001 are fully maintained.

The initial cost of this valve is very competitive, but the longer term saving resulting from robustness and low cost of spares makes it the most affective valve on the market today.

Gate Valves are available in manual or remote operation for use in the following pressure ratings and services:

Pressure & Temprature Ratings

Max Working Pressure	2,000 PSI	3,000 PSI	5,000 PSI	10,000 PSI	15,000 PSI	20,000 PSI
Test Pressure	3,000 PSI	4,500 PSI	7,500 PSI	15,000 PSI	22,500 PSI	30,000 PSI
Production Spec Levels	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4
Product Rating	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
API Temperature Rating	K (-60 Deg C)	K (-60 Deg C)	K (-60 Deg C)	K (-60 Deg C)	K (-60 Deg C)	K (-60 Deg C)
	To	To	To	To	To	To
	Y (+345 Deg C)	Y (+345 Deg C)	Y (+345 Deg C)	Y (+345 Deg C)	Y (+345 Deg C)	Y (+345 Deg C)

Material Requirements

Material Class	Body, Bonnet, End and outlet Connections	Pressure Controlling Parts
AA - General Service	Carbon or Low Alloy Steel	Carbon or Low Alloy Steel
BB - General Service	Carbon or Low Alloy Steel	Stainless Steel
CC - General Service	Stainless Steel	Stainless Steel
DD - Sour Service**	Carbon or Low Alloy Steel*	Carbon or Low Alloy Steel*
EE - Sour Service**	Carbon or Low Alloy Steel*	Stainless Steel*
FF - Sour Service**	Stainless Steel*	Stainless Steel*
HH - Sour Service**	Corrosion Resistant Alloys*	Corrosion Resistant Alloy*

*In accordance with NACE MR-01-75
**As defined in NACE MR-01-75

Mud Valves

Oilquip have a solution for the increasing high-pressure demands placed upon modern drilling mud systems. By introducing a gate valve capable of working at pressures as high as 5,000psi & 7,500 psi. They are purpose made for mud, cement, fracturing and water service.

The body and bonnet of the valves are manufactured from forged steel to increase structural strength. The Oilquip valves are manufactured to conform to API 6A quality levels PSL 1, 2 or 3 and pressure tested to either API 6A or API 6D requirements. Full material tractability is guaranteed.

Valves are available in a variety of sizes from 2"-6" and can also be supplied with flange, hub, hammer unions, threaded or butt-weld ends. Sour service valves conform to the requirements of NACE MR-01-75.

API 5000PSI Mud Gate Valves

Mud Gate Valves are available for use in the following pressure ratings and services:

Pressure & Temperature Ratings

Max Working Pressure	2,000 PSI	3,000 PSI	5,000 PSI
Test Pressure	3,000 PSI	4,500 PSI	7,500 PSI
API Temperature Rating	P (-29 Deg C)	P (-29 Deg C)	P (-29 Deg C)
	To	To	To
	U (+121 Deg C)	U (+121 Deg C)	U (+121 Deg C)

Material Requirements

Material Class	Body, Bonnet, End and outlet Connections	Pressure Controlling Parts
AA - General Service	Carbon or Low Alloy Steel	Carbon or Low Alloy Steel
BB - General Service	Carbon or Low Alloy Steel	Stainless Steel
DD - Sour Service**	Carbon or Low Alloy Steel*	Carbon or Low Alloy Steel*
EE - Sour Service**	Carbon or Low Alloy Steel*	Stainless Steel*

*In accordance with NACE MR-01-75
**As defined in NACE MR-01-75

Mud Gate Valves are available for use in the following pressure ratings and services:

API 7500PSI Mud Gate Valves

Mud Gate Valves are available for use in the following pressure ratings and services:

Pressure & Temperature Ratings

Max Working Pressure	7,500 PSI (Rubber Seated)	7,500 PSI (Metal Seated)
Test Pressure	11,250 PSI	11,250 PSI
API Temperature Rating	P (-29 Deg C)	K (-60 Deg C)
	To	To
	U (+121 Deg C)	Y (+345 Deg C)

Material Requirements

Material Class	Body, Bonnet, End and outlet Connections	Pressure Controlling Parts
AA - General Service	Carbon or Low Alloy Steel	Carbon or Low Alloy Steel
BB - General Service	Carbon or Low Alloy Steel	Stainless Steel
DD - Sour Service**	Carbon or Low Alloy Steel*	Carbon or Low Alloy Steel*
EE - Sour Service**	Carbon or Low Alloy Steel*	Stainless Steel*

*In accordance with NACE MR-01-75
**As defined in NACE MR-01-75

API 6A Choke Valves

Choke Valves are available in manual or remote operation for use in the following pressure ratings and services:

Pressure & Temperature Ratings

Max Working Pressure	2,000 PSI	3,000 PSI	5,000 PSI	10,000 PSI	15,000 PSI	20,000 PSI
Test Pressure	3,000 PSI	4,500 PSI	7,500 PSI	15,000 PSI	22,500 PSI	30,000 PSI
Production Spec Levels	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4
Product Rating	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
API Temperature Rating	K (-60 Deg C)	K (-60 Deg C)	K (-60 Deg C)	K (-60 Deg C)	K (-60 Deg C)	K (-60 Deg C)
	To	To	To	To	To	To
	Y (+345 Deg C)	Y (+345 Deg C)	Y (+345 Deg C)	Y (+345 Deg C)	Y (+345 Deg C)	Y (+345 Deg C)

Material Requirements

Material Class	Body, Bonnet, End and outlet Connections	Pressure Controlling Parts
AA - General Service	Carbon or Low Alloy Steel	Carbon or Low Alloy Steel
BB - General Service	Carbon or Low Alloy Steel	Stainless Steel
CC - General Service	Stainless Steel	Stainless Steel
DD - Sour Service**	Carbon or Low Alloy Steel*	Carbon or Low Alloy Steel*
EE - Sour Service**	Carbon or Low Alloy Steel*	Stainless Steel*
FF - Sour Service**	Stainless Steel*	Stainless Steel*
HH - Sour Service**	Corrosion Resistant Alloys*	Corrosion Resistant Alloys*

*In accordance with NACE MR-01-75
**As defined in NACE MR-01-75

API 6A Plug Valves

Plug Valves are available in either lever, gearbox or remote operation for use in the following pressure ratings and services:

Max Working Pressure	5,000 PSI	10,000 PSI	15,000
Test Pressure	7,500 PSI	15,000 Psi	22,500 PSI
Production Spec Levels	1, 2, 3 & 4	1, 2, 3 & 4	1, 2, 3 & 4
API Temperature Rating	P (-29 Deg C)	P (-29 Deg C)	P (-29 Deg C)
	To	To	To
	U (+121 Deg C)	U (+121 Deg C)	U (+121 Deg C)

Material Requirements

Material Class	Body, Bonnet, End and outlet Connections	Pressure Controlling Parts
AA - General Service	Carbon or Low Alloy Steel	Carbon or Low Alloy Steel
BB - General Service	Carbon or Low Alloy Steel	Stainless Steel
CC - General Service	Stainless Steel	Stainless Steel
DD - Sour Service**	Carbon or Low Alloy Steel*	Carbon or Low Alloy Steel*
EE - Sour Service**	Carbon or Low Alloy Steel*	Stainless Steel*
FF - Sour Service**	Stainless Steel*	Stainless Steel*

*In accordance with NACE MR-01-75
**As defined in NACE MR-01-75
